Product Details:
|
| Type: | Single And Double Station | Winding Speed: | 30m/Min |
|---|---|---|---|
| Winding Type: | Double Coiler | Coiler: | One Or Two |
| Cylinder QuantityCylinder Quantity: | 6 PCS | Speed: | 0-40m/Minute |
| High Light: | tube coiling machine,pipe winding machine |
||
Single Station Coiler/Winding Machine for Plastic Pipe automatic coil winding machine
Single Station Coiler/Winding Machine Features and application
1. The machine is mainly used in winding up and packing of aluminium plastic compound pipe, cross linking compound pipe and other plastic soft pipes. It adopts automatically winding.
2. Adjusting winding speed and winding method. It has two disk for continuous winding. It adopts air_operated method.
3. The wheel rib of the winding up wheel adopts air_operated opening and closing. It is equiped with a ray creel stand to automatically wind displacement.
4. It reaches winding up orderly. The machine structure is compact. Its automatication is high, Its appearance is beautiful and its operation is convenient.
The main technical parameters
1. Inner core diameter: Φ 600mm-1100mm
2. The largest diameter: Φ 1800mm
3. The maximum speed: 10m/min
4. Width: 600mm (adjustable)
5. Material: Aluminum
6. Winding tube: Φ 20mm ~ Φ 75mm
7. Torque motor power: 35N. M
8. Size (L × W × H): 4500 × 1800 × 2000mm
Specification
| Model | SPS280 | SPS400 | SPS700 |
| Disk Min Size (mm) | 280 | 400 | 700 |
| Disk Max Size (mm) | 700 | 1200 | 1800 |
| Winding width (mm) | 220 | 300 | 500 |
| Maximum rolling pipe (mm) | 20 | 50 | 75 |
| Model | 1200 twin-plate pipe | 1600 twin-plate pipe | 3000 single-plate pipe |
| Inner diameter | 500-1000mm | 550-1000mm | 1000-3000mm |
| Winding speed | 0.5-30m/min | 0.5-30m/min | 0.5-15m/min |
| Winding width | 300-500mm | 300-500mm | 200-500mm |
| Winding pipe spec | 16-32mm | 16-63mm | 63-110mm |
| Air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
| Moment motor power | 10N. M | 10N. M& 16N. M | 30N. M |
| Dimension | 2700× 1700× 1800 | 3000× 2800× 2000 | 3500× 2000× 3500 |
| Weight | 1000kg | 1500kg | 3000kg |

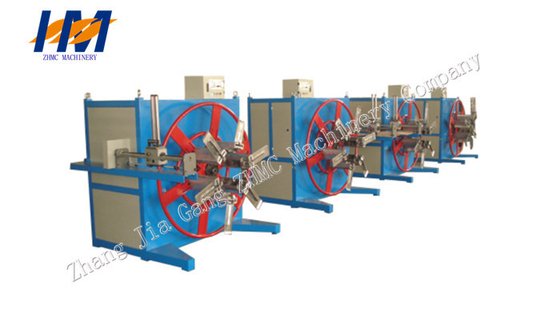

Detailed Picture
