|Plastic Process:||PVC Particle||Sheet Width:||300-2500mm|
|Material:||PVC PP PE||Working Condition:||380 V|
plastic sheet extrusion machine,
plastic plate extrusion line

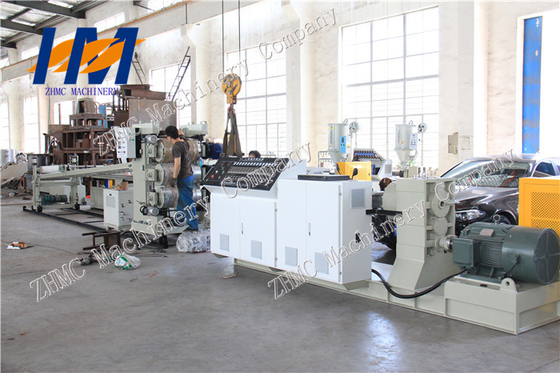

PVC plastic sheet calendering extrusion making machine line extruder
PVC Plastic Sheet Line Features
1 . Width: 320-3000mm
2 . Thickness: 0.2--20mm
3 . Capacity: 150-500kg/hr
4 . Mono-layer and multi-layer sheet extrusion system for up to 5 layers
5 . Processing capabilities: PE, PP, PS and other thermoplastic materials
Packing industrial, Stationery, Decoration,etc
Product Sheet Line Detail
Max .width of product
|Thickness of product||mm||2-5|
1 . Plastic pellets are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender.
2 . The produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet.
3 . After the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.
