Product Details:
|
| Type: | Vacuum Forming Machine | Application: | Pipe |
|---|---|---|---|
| Weight: | 1300 Kgs | Screw: | Single Screw |
| Specification: | 1500mm X 800mm X 1200mm | Automatic Grade: | Fully Automatic |
| High Light: | vacuum calibration equipment,plastic vacuum tank |
||

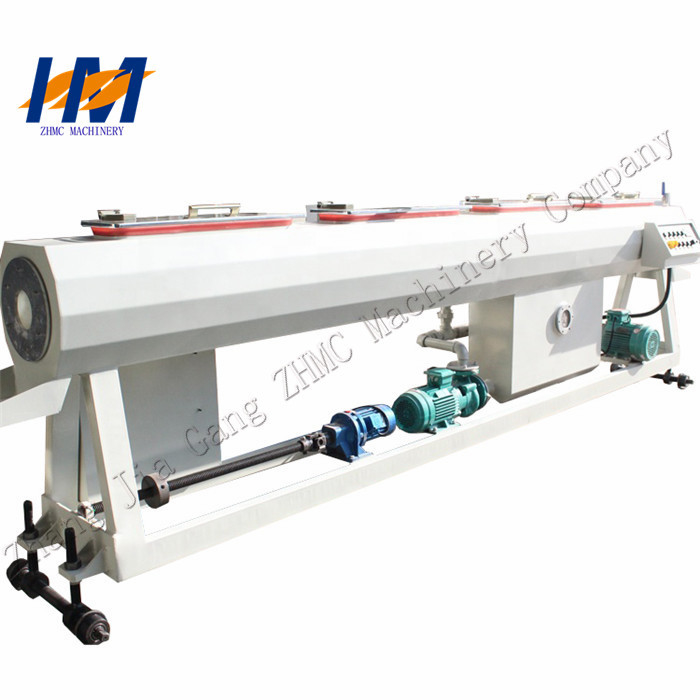

Vacuum Calibration Tank Vacuum calibrator for plastic pipe extrusion with vacuum pumps
Vacuum Calibration Tank Vacuum calibrator Description
1. The production line with high efficiency single screw extruder and through the spiral or basket type mould by multi - Crawler traction machine vacuum sizing cooling and as is known to all, large-diameter PE pipe are tractive pipe variety, We specially developed rapid traction switching device, so as to solve the the problem.
2. By the appropriate transformation part of the unit, you can achieve a two-layer or multi-layer co extruded, replacing the extruded layer material or add special materials according to the requirements of the use, such as flame retardant, antistatic, corrosion resistance, nano antibacterial materials, greatly improving the pipe use, reduce raw material consumption, thereby reducing the cost of pipes.
Application
1. PVC Pipes Extrusion Machine System for drinking,Plastic Pipe Extrusion Equipment for PVC and UPVC, PVC Plastic Extruder Production Line for pipe.
2. 16mm-630mm Plastic pipe production line for pvc pipes PVC Pipe Making Machine with price, PVC Pipe Extrusion Line, Pipe Production Line.
3. PVC Pipe Machine Line, PVC Drainage Pipe Production Line, soft PVC pipe machine, PVC Tube Machine.
PVC profile vacuum forming table Features
1. Vacuum calibration tank is made of stainless steel, it is stable and adjusted, and it can be adjusted
horizontally and vertically.
2. Plastic Pipe Vacuum Calibration Tank consists of vacuum pumps, water pumps, motor for moving
table automatically, etc.
3. This Vacuum Calibration Tank is one of assitant machines in plastic pipe production line. It is used
to make material from extruder shape and cool down.
4. We will change the quantity of vacuum pumps and water pumps, and the length of table according
to the diameter of pipes, the wall thickness of pipes.
Technical information (FYI)
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max. width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing height (mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing force (KN) | 20 | 20 | 20 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power (kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume (m3/h) | 6 | 6 | 6 | 9 | 12 | 15 |
| Compression air (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Application
1. This line is used for production PVC/PC decoration material with different shape and size for different application (Including PVC/PC plastic doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates, etc)
2. Vocuum calibration platform is used to cool, vocuum and calibrate PVC ceiling wall panel, we use water to cool PVC ceiling wall panel.
Product under processing
