Product Details:
|
| Screw Design: | Double-screw | Power: | 18.5kw |
|---|---|---|---|
| Application: | Sheet , Profile ,Tube | Certification: | CE |
| Specification: | 1500mm X 800mm X 1200mm | Condition: | New |
| High Light: | vacuum calibration tank,plastic vacuum tank |
||

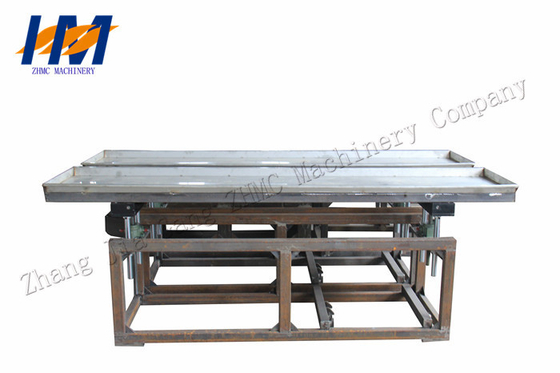

Vacuum cooling calibration table for PVC ceiling panel decorative plates
Vacuum cooling calibration table Descritption
1. Vacuum forming table for PVC profile,PC profile;
2. Vacuum forming tank for PC pipe,PE pipe,PP pipe,PVC pipe.
3. Vacuum forming tank is one important stage of plastic pipe extrusion lines for PC,PE,PP,PVC.
4. Forming tank applies vacuum to calibrate the pipes at defined diameter and also avoids pipe to cause ellipse shape while producing.
5. Also pipes and calibrating sleeves are cooled effectively by nozzles which are inside the tanks for PC,PE,PP,PVC pipe lines.
Features
1. Optimized design table,tank and water pipe system made from stainless steel.
2. Water pipe system and vacuum system stablity and adjustable.
3. Vacuum forming table,tank, can be adjustable in 3-D direction.
Technical information (FYI)
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max. width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing height (mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing force (KN) | 20 | 20 | 20 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power (kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume (m3/h) | 6 | 6 | 6 | 9 | 12 | 15 |
| Compression air (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Application
1. This line is used for production PVC/PC decoration material with different shape and size for different application (Including PVC/PC plastic doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates, etc)
2. Vocuum calibration platform is used to cool, vocuum and calibrate PVC ceiling wall panel, we use water to cool PVC ceiling wall panel.
FAQ
1. How will you make sure the quality?
from machine design, material selection, manufacturing, we apply strict quality standards. and before machine leaves factory, we will fully test machines. in our mind, quality is first, customer is first. no best, only better!
2. What's the payment terms?
30% deposit paid by T/T, 70% balance paid BY T/T before delivery.
3. Can you do shipping to our seaport?
yes, we can do CIF which include shipping to customer's port. you only need do custom clearance at your side.
4. What's the warranty period?
one year. provide service for whole lifespan of machine.
5. What is the after sales service?
upon customer's requirement, we can send our technicians to customer factory for installation,comissioning,training and so on. customer only need afford the cost of round way ticket, food and lodging for our technicians.
