Product Details:
|
| Application: | Mixing | Production Capacity: | 1000 KG/h |
|---|---|---|---|
| Power: | 4-15KW | Diameter Of Discharge Outlet: | 160 Mm |
| Thickness Of Mixing: | 2.0 Mm | Function: | Blending |
| High Light: | vertical mixer machine,vertical blender mixer |
||

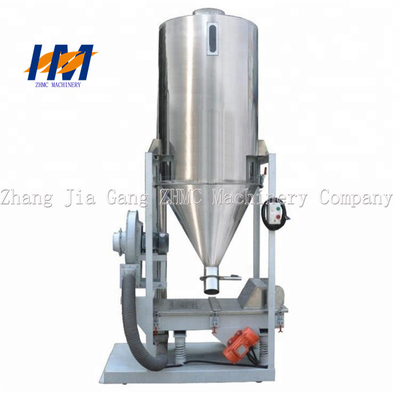

1000KG Plastic Heating and Drying Vertical Color Blender plastic raw material material flow
1000KG Plastic Heating and Drying Vertical Color Blender Working Principle
1. The design of this machine is made by two-stage propeller output fast , the first stage put the raw material into barrel
inside , then the second stage lift the raw material to the upper of the barrel body by rapid elevation .
2. The material will be scattered and flied like the shape of umbrella , the hot air blows out from the center of barrel bottom to surrounding ,upward penetrate smoothly across the gap of moving raw material , carry on the all-round heat exchange during
dynamic drying processing .
3. This machine has muti-function feature , because of the material has been non-stop cycle in the barrel , and the hot air
output from the center , so as to achieve the effect of both mixing and drying .
4. If you do not need drying function , just close the button of "heating ", then only single function left . this machine can select muti-function for granular material or granular and powder mixing material .
5. Barrel body , gun barrel , shaft , rotating blade,feeding gate,feed back gate , barrelhead are all made of stainless steel.
Working Principle for plastic granulate vertical mixer stirrers machine
The vertical stirrers are able to perform even mixture for large volume of material in short mixing time by utilizing the paddles roation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in a short period of time.
Details
1. Helical circular mixture, fast and evenly stirring.
2. Suitable for all kinds of plastic raw materials and color masterbatch or granules.
3. Fully stainless steel contacting parts, rust free and easy to clean.
4. Installed with power control device to ensure safety.
5. Customizable for drying type model.
6. Vertical blender are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the materials from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time.
Specification
| Model | Rotatry Speed (r/min) | Rotatry Speed (r/min) | Size (mm) | D*H Weight (KG) | Capacity (Kg/h) |
| BL1000 | 3 | 280 | 1.3*2.5 | 800 | 1000 |
| 1000 | 5 | 280 | 1.6*2.9 | 1200 | 2000 |
| 2000 | 7.5 | 280 | 2*3.6 | 1500 | 3000 |
| BL5000 | 11 | 280 | 2.4*4.5 | 2000 | 5000 |
| Model | Power | Rotating Speed(R/MIN) | Capacity(kg) | Dimensions(MM) | |
| QZ-L500 | 4HP | 4KW | 350 | 500 | 1200*2500 |
| QZ-L1000 | 4HP | 4KW | 350 | 1000 | 1500*2750 |
| QZ-L1500 | 4HP | 5.5KW | 350 | 1500 | 1650*3300 |
| QZ-L2000 | 4HP | 5.5KW | 350 | 2000 | 1850*3300 |
| QZ-L3000 | 4HP | 7.5KW | 350 | 3000 | 2000*3750 |
| QZ-L5000 | 6HP | 7.5KW | 350 | 5000 | 2400*4350 |
| QZ-L7500 | 6HP | 11KW | 300 | 7500 | 2600*5100 |
| QZ-L8000 | 6HP | 11KW | 300 | 8000 | 2750*5100 |
| QZ-L10000 | 6HP | 11KW | 300 | 10000 | 3000*5300 |
| QZ-L12000 | 6HP | 15KW | 300 | 12000 | 3100*5850 |
| QZ-L15000 | 6HP | 15KW | 300 | 15000 | 3100*6500 |
Our Services
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will offer technical solutions.
Sketch
