Product Details:
|
| Product Type: | Plastic Pipe , Profile | Type: | Plastic Pipe Traction Machine |
|---|---|---|---|
| Model Number: | QY-50 | Power: | 0.8KW |
| Dimension(L*W*H): | 2100mm X 1700mm X 1400mm | ||
| High Light: | belt traction machine,caterpillar haul off |
||
Two caterpillars PVC plastic pipe haul off machine traction machine with guide pully
Two caterpillars PVC plastic pipe haul off machine Application
1. PVC pipe haul off machine. This machine is designed for tracting 50-200mm PVC pipe
2. Also it can tract PE/PPR pipe diameter 50-110 mm.
3. With different effect tracction length, this machine is widely used in Pipe making, profile making area.
Features
1. Adopting double-caterpillar traction way, wide in application.
2. Adopting stepless speed regulation, large in extent of speed regulation.
3. Even in high drawing speed, low in noise
4. Compact in structure, fine appearance.
Application
1. Haul off machine caterpillar type shaped plastic material drawer adopts double caterpillar drawing method, thyristor stepless governor.
2. It is mainly uesd with a plastic extruder for plastic pipe material, soft pipe and other plastic shaped materials. Its applicability is wide and its usage is convenient.
There mainly have four types plastic haul-off series machine
1. QY series haul-off machine
2. Multi-caterpillar haul-off machine
3. Four-claw haul-off machine
4. DY type haul-off machine
Main Techinical Standards
| PVC pipe range(mm) | Caterpillar QTY | Driving power | Peak traction(N) | Max pulling length(mm) |
Max.speed (m/min) |
| 32-50 | 2 | 2×0.75 | 10000 | 1000 | 15 |
| 50-200 | 2 | 2×1.5 | 15000 | 1500 | 10 |
| 50-250 | 3 | 4 | 20000 | 1500 | 3.5 |
| 75-315 | 4 | 5.5 | 25000 | 1500 | 3 |
| 110-450 | 4 | 5.5 | 25000 | 1600 | 2 |
| 110-450 | 4 | 5.5 | 30000 | 2200 | 1.2 |
| 200-630 | 6 | 7.5 | 35000 | 1600 | 1.4 |
| 200-630 | 6 | 7.5 | 40000 | 2500 | 0.9 |
| 315-800 | 8 | 11 | 60000 | 2500 | 0.7 |

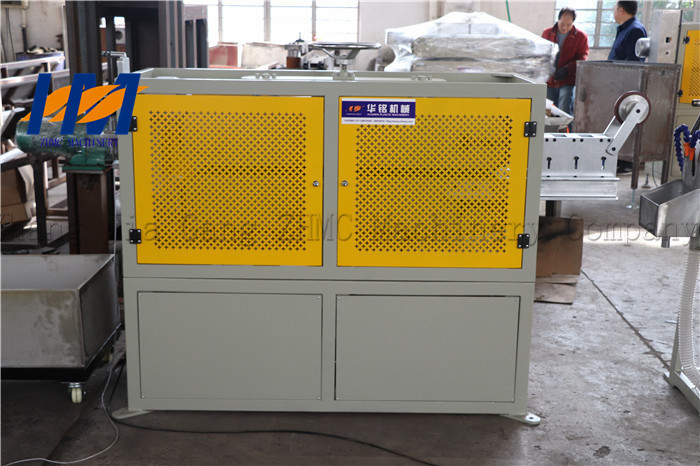

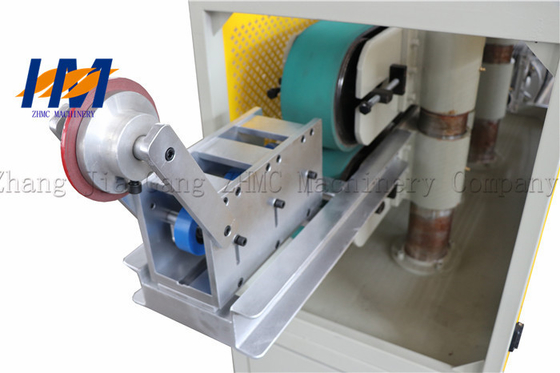

Detailed picture
