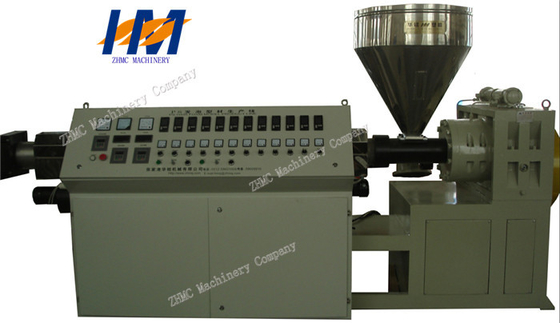

Small plastic co extrusion machine single screw high capacity

Small plastic co extrusion machine single screw high capacity
Small plastic co extrusion machine single screw high capacity Small plastic co extrusion machine single screw high capacity

Large Image :  Small plastic co extrusion machine single screw high capacity

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: SJ 45 / 75
Payment & Shipping Terms:
Minimum Order Quantity: Two units
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20+Units+Per Month

Small plastic co extrusion machine single screw high capacity

Application: Pipe Profile Sheet Voltage: 380V
Automatic Grade: PLC Control Motor Power: 37KW
Color: Customized Inverter: ABB Brand
High Light:

plastic moulding machine


plastic manufacturing equipment

Small plastic co extrusion machine single screw high capacity



Small Plastic Co extrusion Extruder Description

1 .  The serise extruders with appropriate diemould and auxiliary machine can directly convert thermoplastic espical pvc powder into pipe, plate sheet, film and profile, and also provide function of modefling and pelleting, but twin screw extruder need work with different downstream machines in the whole production line.

2 .  The extruders are derived by DC motor with a thrusters to regulate.

3 .  It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by ciculation of oil, it includes vacuum venting and forced feeding.

Why choose us

1 . Lower investment cost for a high quality and durable machine;

2 . Low energy consumption with high production output;

3 . Overseas installation and training are available;

4 . Machine warranty with spares in stocking and in-time delivery;

5 . Fast machine delivery and installation: TURUI produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an TURUI recycling machine is 35 days.


Model SJZ-45 SJZ-45 SJZ-65 SJZ-80 SJZ-92
Screw diameterz(mm) 45/90 55/110 55/110 80/156 90/188
Screw speed(rpm) 45.5 30 34.7 36.9 32.9
Screw length(mm) 989 1200 1440 1440 2500
Motor power(KW) 15 22 37 55 110
Heating power(KW) 12 18 24 36 86
Capacity(kg/h) 40-60 80-140 160-300 220-450 400-600
400-600 2800 3500 4000 5000 10000



Components of PVC profile making machine

a . Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

b . Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

c . Spraying and cooling table:
Rapid vacuum calibrating system allows the hot extruded PVC profiles to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.

d . Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e . Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

f . Stacking:
Automatic stacking with fixed length


Technical Features

1 .  Twin Screw Extruder With PLC Control system, reliable and stable performance.
2 .  Equipped with over-load protection and stoppage alarming system.
3 .  Specified screw design for better material plasticizing & mixing effect, bimetallic screw and barrel can guarantee perfect solution.
4 .  This extruder is equipped with AC motor, auto temperature controller, vacuum exhausting device etc.
6 .  This production line is suitable for production of plastic pipe, plate and profile and etc.
7 .  Concourse chip(inside is chrome plating) is equipped on the extruder head, pressure sensor device is also equipped with.

Small plastic co extrusion machine single screw high capacity 0
