Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm

Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm
Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm

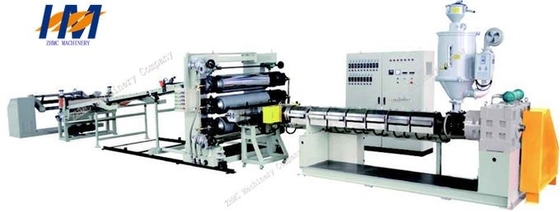

Large Image :  Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: PP-PE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 5 sets per month

Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm

Description
Application: Sheet Screw Design: Single-screw
Dimension(L*W*H): 2300mm X 3000mm X 3000mm Thickness: 0.5-1 Mm
Out Put: 2.5 T/d Working Condition: 380 V
Screw: Single Screw
High Light:

plastic sheet extrusion machine

,

plastic plate extrusion line

ABS Plastic sheet extrusion line plastic sheet production line



ABS Plastic sheet extrusion line Application



1. Refrigerator board

It has wide application in the production of the refrigerator door and inner gallbladder, drawers, water dispensers, etc.

2. Sanitaryware plate

It is widely applied in the field of bath products, such as the bathtub, the shower cabinet, the vapor room, washing bowl, etc

3. Advertising board

This board is mainly used in guiding board, machinery sign, advertisement decoration, indoor decoration and so on

4. Baggage plate

It is mainly applied in the field of draw-bar boxes, luggage cases, recreation bags, etc

5. Car plate

It is mainly used for producing tops of cars and buses, instrument boards, backrest, car doors, window frames, shells of the
motorcycles, golf vehicles, etc



Product Description



1. Raw material: PVC powder and additives

2. Voltage 380V,50HZ, 3Phase.

3. Standard: 300 mm.

4. Extrusion speed: 1~5 m/min.

5. Equipment center height:1000mm

6. Operation direction:From right to left

7. Equipment color:Red or customized.



There are three different models with different production capacity.



Extruder Model SJ65 SJ80 SJ100
Motor Power VVVF 55 VVVF 65 VVVF 75
Capacity(kg/h) 50 80 110



Calibration tanks and basin are made of stainless steel
  6000mm
Table width 1100mm
Ceneter distance 320 mm
Vacuum pump power 4 kw
Water pump power 2.2 kw
Vacuum nuzzle 10 pcs Red
Vacuum degree 0.08-0.09Mpa
Water nuzzle 16 pcs Blue
Water channel Stainless steel
Nuzzle location Two sides
Up and down control Can be customized
Other direction3 Manual adjustment



Product Display



Single screw ABS Sheet Extrusion Line 380V 50HZ 3 Phase 2300mm x 3000mm x 3000mm 0
