PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed

PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed
PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed

Large Image :  PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: PC PMMA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 10 Lines per month

PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed

Description
Name: Granulation Extrusion Line Plastic Processed: PVC
Screw&barreL: 38CrMoAlA Inverter: ABB Or TECO
Assembly Structure: Integral Type Extruder Screw Diameter: 90 Mm
High Light:

pvc profile extrusion line

,

plastic profile production line



Good quality PVC recycling granules extruder plastic extrusion line making machine



PVC Granulation Extrusion Line Description



1. The machine mainly produces PVC granules by hot cutting. The equipment is advanced, it has characteristic of strong universal and high output.
2. Conical double-screw extruder, very suitable to process PVC powder with high capacity
Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
Auxiliary machine: Pellets cooling & classifying.

Process

A wet extrusion process can be a continuous or a batch operation and typically consists of the following steps:
1. First the powders need to be dosed and homogenized as required by the recipe. All challenges related with these processes need to be dealt with. Before being delivered to the extrusion line, a reliable feeder with a mass flow pattern is required.
2. A wet extrusion line includes a mixing and kneading device that fulfils an important function. A liquid addition system will spray or drip water or an organic solvent onto the dry powder bed. As the kneading progresses, a homogeneous wet dough is formed.

Features

1.High automationless labor waster plastic becomes granules directly after granulator
2.High quality granules with gas cylinder shape and smoothy and beautiful granule size is adjustment.
3. Volumetric feederscrew and granule cutter are controlled by inverter.
4.The barrel and screw are made of 38CrMoAl with surface Nitriding hardening treatment the the life-span is longer.
5. The gear box is hardend surface oil cooling onewhose weight is only half of that of soft surface gear box so it can suffer more wear-tear the lift span is 3-4 times longer and the loading capability is increased by 8--10 times higher.
6. The spaghetti will be cut directly by cutter and then the granules will be transported to the silo directly by air conveyor so no broken spaghetti will happen.
7.Water vent air vent and vacuum pump are equipped on the barrel to discharge the water and air so the granule quality is guaranteed.

Technical Parameter

Model No. SJ 75 SJ 90 SJ 100 SJ 110 SJ 120
Screw Diameter 75 90 100 110 120
Drive(kw) 45 75 90 100 110
Barrel Heaters(kw) 20 25 30 35 45
Screw L/D 25/36/47 25/36/47 25/36/47 25/36/47 25/36/47
Output Capacity(kg/h) 75-100 90-150 140-220 210-300 280-400
Product display

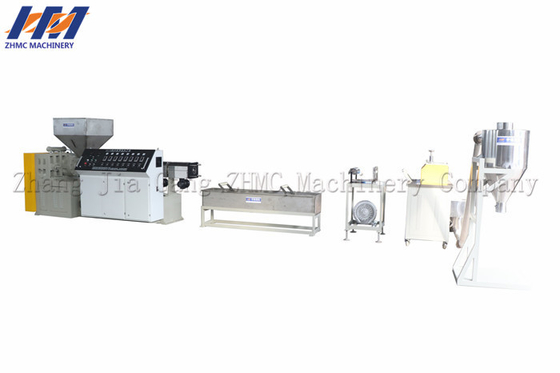

PVC Recycling Granules Plastic Profile Extrusion Line / Making Machine High Speed 0
