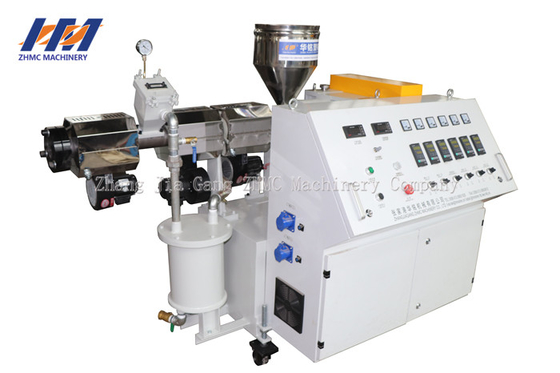

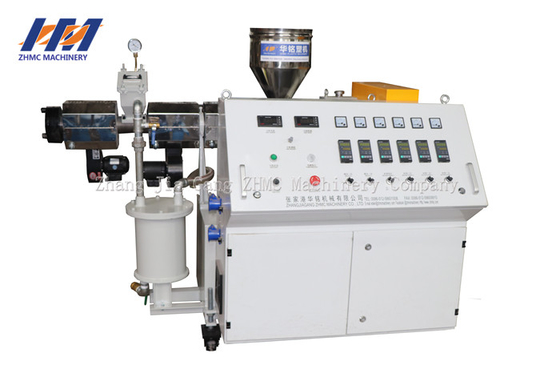

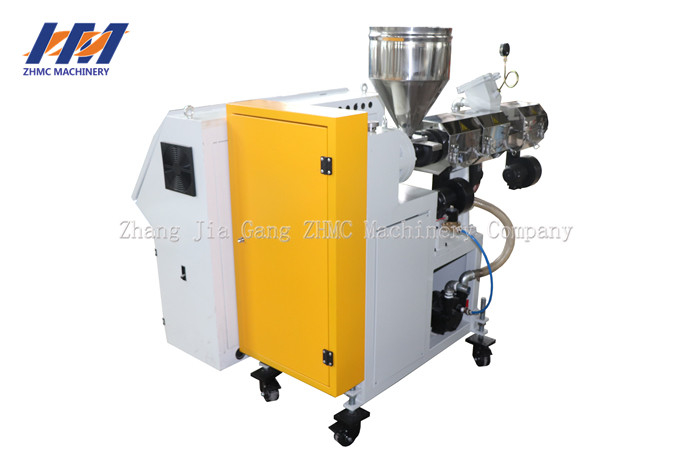

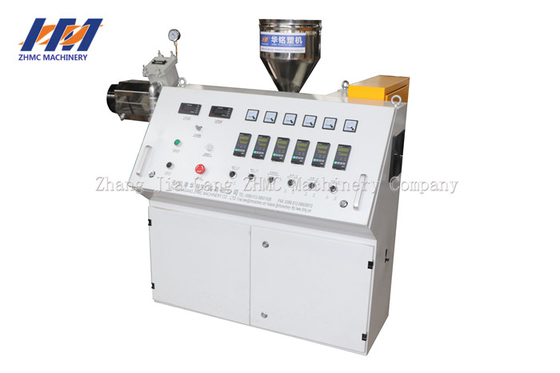

Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate

Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate
Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate

Large Image :  Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate

Product Details:
Place of Origin: China
Brand Name: ZHMC Machinery
Certification: CE
Model Number: ZHMC - PC30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea worthy
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 50 lines per month

Pc Pipe One Screw Profile 30mm Tube Extrusion Machine For Polycarbonate

Description
Application: PIPE, Profile Weight: 1500kg
Raw Material: Polypropylene, Pc Granules Warranty: 1 Year
Automatic Grade: Fully Automatic Product: PC Light Tube Machine
Screw Design: Single-screw Screw Ratio: 28:1

Tube Production Line Pc Pipe Extruder Single Screw Profile Extruder



PC PMMA Extruder Product Description



1. The plastic profile making machine host is single screw extruder, suitable for producing PE PP PVC ABS profiles.


2. The profile production line includes SJ45 single screw extruder, muold, vacuum forming table, haul-off machine, cutting machine and stacker.



3. The extruder uses ABB inverter, Siemens motor, Siemens contactor, Schneider circuit breaker, Omron temperature controller, ensure the long-term operation of the equipment is more stable.



4. The vacuum setting tank and spray cooling tank are made of stainless steel with filters and silencers.


Features and advantages

1. Newly developed online precise cutting technology, one-time cutting online, no need the second time cutting,

cutting precision within 0.5mm, cut end neat, chip-less, higher efficiency;

2. Special screw for PC material, perfect plasticizing, to ensure the finished products without crystallized dot,

without pulling mark, without vibration mark, with high light transmittance, and high transparency.



3. Screw made of imported special alloy steel, material never attach on the screw, no black dot during production and no need to clean screw.


4. Composition & technical details of Single and double colors T5 T8 T10 PC LED tube light housing extrusion machine



PC PMMA Extursion Line Equipment



No.
Major parts
Detail information
1
Vacuum loading machine
Driving motor: 0.75KW
2
Hopper drying machine
electric heating power: 6KW, blower: 0.25KW
3
SJ45/28 Single screw extruder
Driving motor: 11KW, heating power:12KW,cooling power:0.54KW.
4
PC LED light pipe mould
mould structure up to customer's sample or drawing dimension,
such as round pipe,semi circle, separated square cover or base.
5
Vacuum forming tank
Tank length: 2500mm ,width:600mm.
vacuum pump:2.2KW,1pc.
water pump:0.37KW,1pc.
table moving motor:0.55KW.
stainless steel tank.
6
Haul off machine
haul power:0.75KW*2pcs; 2caterpillars
7
Cutting machine
Cutting motor:0.75KW, knife lift cutter.
8
Pile tank
length:2000mm.



Model diameter (mm) L/D RPM ( r/min) Power (Kw) Capacity (Kg/h)
ZHMC-30 30 25-33 3-100 4/5.5 2-15
ZHMC-45 45 20-32 5-84 5.5/7.5 5-40
ZHMC-60 60 20-32 5-84 17.5/22 15-80
ZHMC-90 90 20-33 5-84 30/37 25-120
ZHMC-100 100 20-33 5-84 37/45 45-150
ZHMC-120 120 20-33 5-84 45/55 75-200




FAQ



1. Are you a factory or trading company?

Both.



2. What's your advantages?

1. Excellent quality control.

2. First-class service.

3. Professional Tech. and R&D team.

4. Quick manufacturing time.

5. Quite competitive price.



3. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.



4. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



5. how long is the warranty?

We can offer one-year warranty for the whole machine.
