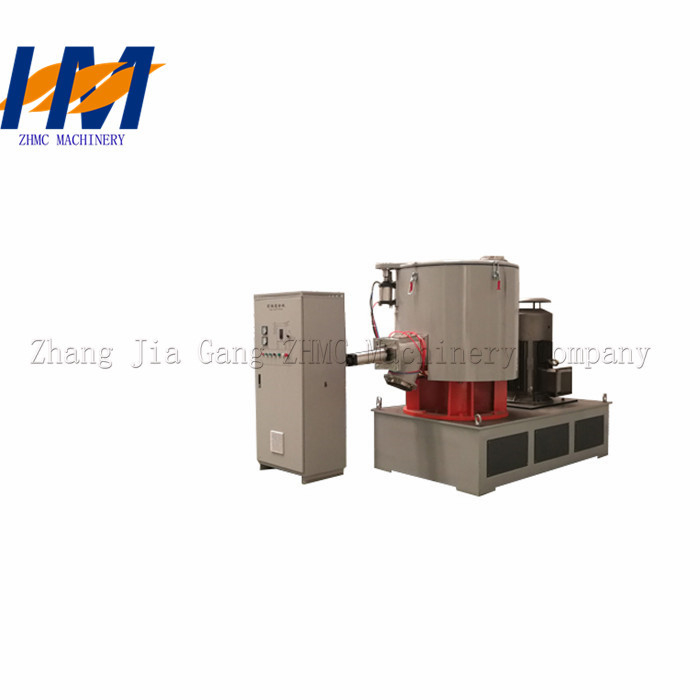

Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation

Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation
Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation

Large Image :  Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: 500 / 1000 L
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 20
Supply Ability: 30 + unit +Per month

Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation

Description
Additional Capabilities: Drying Application: Liquid With Suspended Solids, Powder, Granules
Application Area: Chemical Inverter: ABB
Paddle Shaft: Stainless Steel Stirring Type: Forced
Temperature Meter: RKC Or Omron
High Light:

pvc compounding mixer

,

plastic material mixer machine

High Speed Vertical Horizontal Plastic Mixer high speed mixer machine



High Speed Vertical Horizontal Plastic Mixer Features



1. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
7. The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.
8. The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.



Details



1. High speed mixer unit is used in mixing, stirring, drying, coloring and other technique of plastics, rubber, chemical for daily use.

2. It is an ideal advanced equipment of producing plastics plate, pipe, special-shaped materail and degradation plastics.

3. The unit is developed through introducing, digesting, and absorbing foreign advanced technology.

4. The minor vacuum mixing principle is adopted in mixing materials.

5. It has many advantages, such as high auto level, fast mixing. Its blades are precisely cast with stainless steel and passed the dynamic and static balancing test.

6. Especially, the blades of cooling parts adopt the most advanced screw stirring structure in the world.

7. There is no deal angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly, mixing efficiency has reached foreign advanced level.



Technical Parameter



Model Volume (L) Effective volume (L) Motor power (kw) Rotating speed (rpm) Heating mode Discharging
SHR-10 10 7 3 600-3000 Self-friction Manual
SHR-50 50 30 7/11 750/1500 Friction/electrical Pneumatic
SHR-100 100 75 14/22 650/1300 Friction/electrical Pneumatic
SHR-200 200 150 30/42 460/920 Friction/electrical Pneumatic
SHR-300 300 225 40/55 475/950 Friction/electrical Pneumatic
SHR-500 500 370 55/75 430/860 Friction/electrical Pneumatic
SHR-800 800 500 83/110 370/740 Friction/electrical Pneumatic
SHR-1000 1000 700 110/160 330/660 Friction/electrical Pneumatic
SHR-1300 1300 1000 132/200 330/660 Friction/electrical Pneumatic

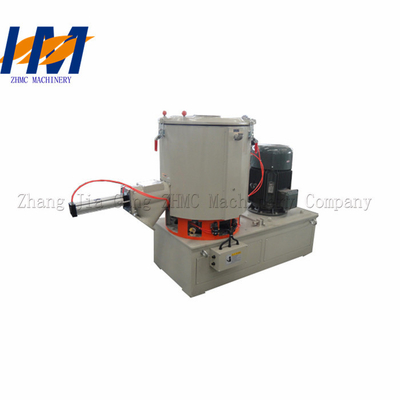

Detailed picture



Large Volume Plastic High Speed Mixer Vertical Horizontal High Degree Automation 0
