Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function

Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function
Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function

Large Image :  Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: Homogenizer
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 30 + unit + Per month

Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function

Description
Blower Power: 1.1 Kw Heating Power: 15 KW
Motor Power: 4KW Capacity: 500-8000kg/h
Mixing Speed: 360 R/min Function: Blending
High Light:

vertical mixer machine

,

vertical blender mixer

Vertical Plastic Color Mixer Machine with Drying Function vertical blender





Vertical Plastic Color Mixer Machine Features



1. Stir vanes and barrels are made of stainless steel
2. Stir vanes are convenient to be loaded and unloaded easy to be cleaned
3. Close stirring, safe and reliable
4. Complete mixing in a short time
5. Timer is equipped to adjust mixing time freely
6. Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash
7. The frame is of framework design, solid and durable
8. Propeller is wholly processed after welding, with high concentricity and steedy operation
9. The standing operation allows little space
10. Mixing in a sealed manner, uniform mixing and no leakage definitely.
11. With drying/heating system.



Working Principle for plastic granulate vertical mixer stirrers machine



The vertical stirrers are able to perform even mixture for large volume of material in short mixing time by utilizing the paddles roation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in a short period of time.



Details



1. Helical circular mixture, fast and evenly stirring.
2. Suitable for all kinds of plastic raw materials and color masterbatch or granules.
3. Fully stainless steel contacting parts, rust free and easy to clean.
4. Installed with power control device to ensure safety.
5. Customizable for drying type model.
6. Vertical blender are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the materials from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time.



Specification



MODEL
POWER (KW)
CAPACITY (KG)
DIMENSION (MM)
QZ-L500
4
500
1200*1200*2650
QZ-L1000
4
1000
1500*1500*2800
QZ-L1500
5.5
1500
1650*1650*3200
QZ-L2000
5.5
2000
1800*1800*3250
QZ-L3000
7.5
3000
2000*2000*3750
QZ-L5000
11
5000
2050*2050*4900
QZ-L6000
11
6000
2050*2050*5300
QZ-L7500
15
7500
2050*2050*6300
QZ-L8000
18.5
8000
2050*2050*6700


Product Display

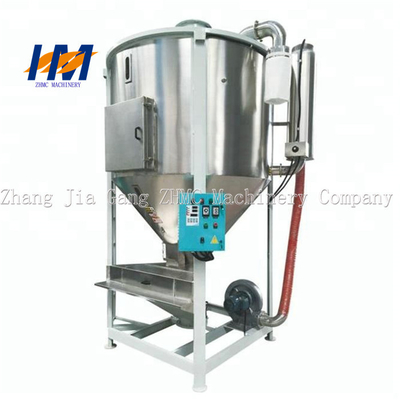

Large Capacity Plastic Vertical Mixer 360 r/min With Drying Function 0
