High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line

High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line
High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line

Large Image :  High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: 500 / 1000 L
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 20
Supply Ability: 30 + unit +Per month

High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line

Description
Additional Capabilities: Drying, Granulating Drying, Granulating: Vertical/Horizontal
Raw Material: PVC Powder Inverter: ABB
Paddle Shaft: Stainless Steel Capacity: 200-5000L
Condition: New
High Light:

pvc compounding mixer

,

pvc high speed mixer

High Speed Mixer for Wdg Drying Equipment Production Line high viscosity mixer



High Speed Mixer for Wdg Drying Equipment Production



1. Consists of 5 machines:mixing machine,granulator,dryer,granding machine and screen machine.(also it can be choosed by yourself based on your need
2. Mixing machine: material inside the barrel flow,diffuse,penetrate each other and finally form uniform status.

3. Granulator:different size granule by changing the stainless steel sieve.And through circle rope-turning movement,becoming high-degree ball shape pellet.

4. Dryer:no dead corner, easy to clean thoroughly,and no cross pollution,safe in operation both manual and automatic.(also granule and dry in one machine)

5. Grinder:suitable for crushing and processing granule.What's more,produce ring grinder and super fine grinder.

6. Screen:an ideal device for granule that has uneven size to sieve continuously.



PLASTIC MIXER MACHINE



1. PVC mixer is the most ideal machinery for manufacturing tubes and profiles in the process of compound mixing, drying and dying.

2. The cold mixer adopts horizontal structure with the characteristics of large cooling area and more homogenized material

3. Both hot and cold mixing blades and belt wheel have been specially through the balancing machine of static and dynamic.

4. The mixer lid is double sealed and opened in pneumatic way.

5. The electric control system uses RKC, Siemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.

6. Optionally equipped with pulse dust collecting device and simple loading system.



Parameter



Model/Item Volume (L) Effective volume (L) Rotating speed (rpm) Motor power (kw) Discharging Weight (kg)
SRL-Z100/200 100/200 75/160 650/1300/90 12/22/7.5 PNEUMATIC 3000
SRL-Z200/500 200/500 150/320 460/920/90 30/42/11 PNEUMATIC 3500
SRL-Z300/600 300/600 200/360 475/950/90 40/55/11 PNEUMATIC 3800
SRL-Z500/1000 500/1000 375/650 475/950/90 55/75/15 PNEUMATIC 5800
SRL-Z500/1600 500/1600 375/1200 475/950/68 55/75/18.5 PNEUMATIC 6500
SRL-Z800/2000 800/2000 600/1500 370/740/68 83/110/22 PNEUMATIC 8500

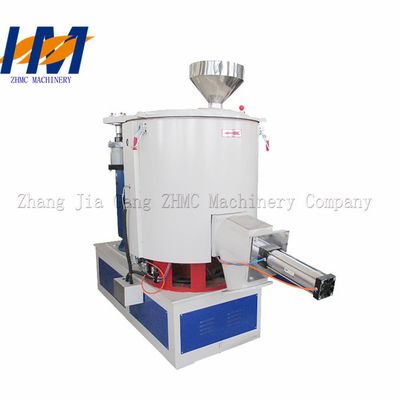

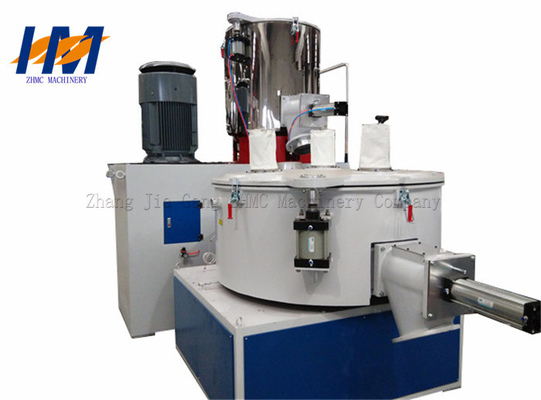

Detailed picture



High Viscosity Plastic Mixture Machine For Wdg Drying Equipment Production Line 0
