High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing

High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing
High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing

Large Image :  High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: PC PMMA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Line
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 10 Lines per month

High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing

Description
Screw Design: Double-screw Application: Profile Sheet
Screw&barreL: 38CrMoAlA Raw Material: PC Granules
Assembly Structure: Integral Type Extruder Voltage: 380V 50HZ
High Light:

plastic profile extrusion machine

,

pvc profile extrusion line

PMMA rod sheet single screw extrusion production line plastic manufacturing machines



PMMA rod sheet single screw extrusion production line Features



1. Precision: ±0.05mm
2. Screw: could be single screw and twin screw.
3. Controller could be controlled by computer or Integrate temperature control. Easy to operate
4. Mould adopt imported S136 Mould dedicated steel.
5. Cooling basin: use SUS304 stainless steel. three-dimensional adjustable frame.
6. Siemens Mainframe. YASKAWA variable-frequency drives
7. Drawing: Precision drawing machine .and adjustable speed. Stable.
8. Cutting : automatically cutting . Precision less than ±0.05mm
9. Material could be : PVC ,PE, TPU, ABS, ARYLIC



Application



1. Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;

2. High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;

3. Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;

4. Polyester for cotton-fiber, polypropylene and other chemical fiber melt.



Combinations: Materials ---->extruder ---> cooling ---> Haul Off -----> cutting



1. Main Paraments(Data sheet)
2. Output: 5m/min
3. Occupied Area: 15M(L)*2M(H)*1(W)
4. Weight: 1TON
5. Electrical Load: 20KW
6. Voltage: 380V/50HZ, 415V/50HZ OR CUSTOMIZED
7. Material: PVC ,PE, TPU, ABS, ARYLIC
8. Delivery: 30 day
9. Volume: about 1/3 20' container



Main technical parameter



Model YF120 YF180 YF240 YF300 YF400 YF600
Max. Product Width (mm) 120 180 240 300 400 500
Installation Power (kW) 13.05 19.3 27.5 31.6 31.6 37.1
Cooling Water Flow (m3/h) 5 5 7 7 8 10
Compressed Air (Mpa) 0.6 0.6 0.6 0.6 0.6 0.6



Detailed Picture

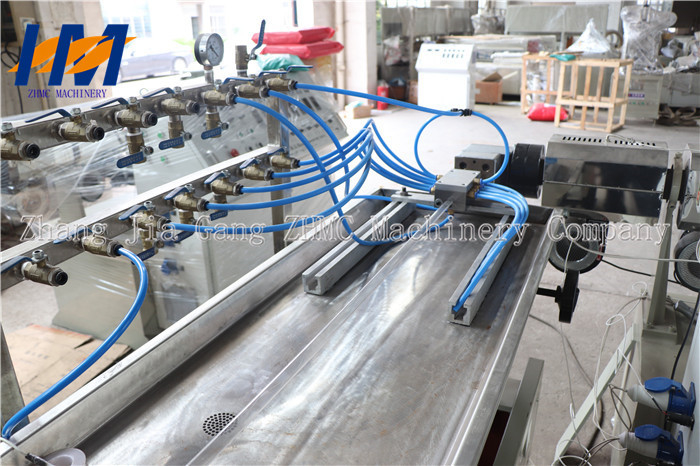

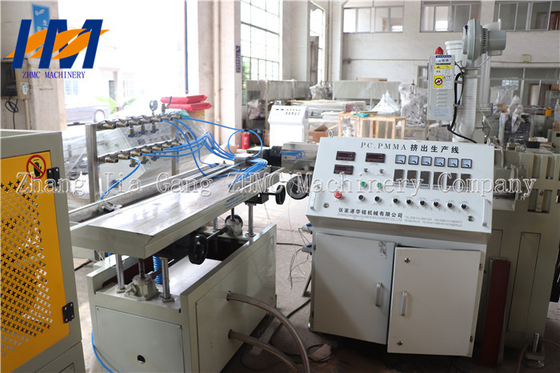

High Precision Plastic Profile Extrusion Line For PMMA Rod Sheet Producing 0
