High Intensity Plastic Profile Extrusion Line Special For PC Tube Making

High Intensity Plastic Profile Extrusion Line Special For PC Tube Making
High Intensity Plastic Profile Extrusion Line Special For PC Tube Making High Intensity Plastic Profile Extrusion Line Special For PC Tube Making

Large Image :  High Intensity Plastic Profile Extrusion Line Special For PC Tube Making

Product Details:
Place of Origin: China
Brand Name: ZHMC
Certification: CE
Model Number: PS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Line
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 10 Lines per month

High Intensity Plastic Profile Extrusion Line Special For PC Tube Making

Description
Color: White And Transparent Material: PC PMMA Particle
Origin: Zhangjiagang Standard: CE Or GB
Application: Led Tube Type: Vented
High Light:

plastic profile extrusion machine

,

pvc profile extrusion line

PC PMMA Led Lamp extrusion Machine Plastic Cover Production Line PC Tube Making





Product Features

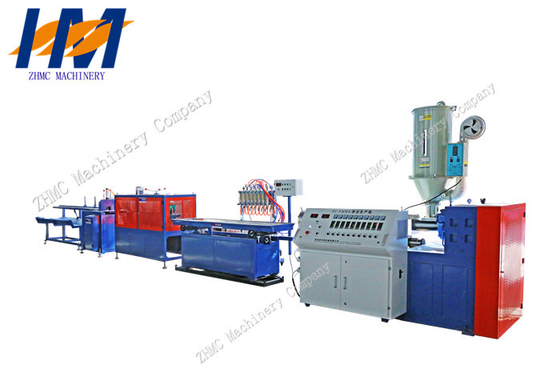

The whole production line includes the following parts:
1.  Drying machine
2.  SJ-50 single screw extruder
4.  profile molds (make according to your requirements)
5.  Vacuum cooling shaping table
6.  Belt type tractor
8.  Precise Cutting machine




Advantage and application
1.  Automatic cutting machine, cutting process with synchronized traction,Cutting length of by laser positioning, automatic/manual/timer/counter/reminder,.Online cutting length error in (0.20mm)
2.  The Extruder has frequency converter to save energy power/ Electricity



Material Introduction



1.  PMMA ,also called acrylic, is a kind of colorless and transparent particle.
2.  It provides good transparency, chemical stability and weathering resistance.
3.  And easy to stain ,easy processing.
4.  Besides,it has beautiful appearance.
5.  It’s widely used in the modern construction industry.
6.  PMMA is a non-toxic and environmentally-friendly material that can be used to produce tableware.
7.  PMMA is a non-toxic and environmentally-friendly material that can be used to produce tableware.





Details



NO. Major parts Detail information
1 Vacuum Loading Machine Driving motor:1.15KW
2 Drying Hopper Electric heating power:6KW,Blower:0.25KW
3 SJ-50/28 Single Screw Extruder Driving motor:15KW,Capacity:60-80KG/Hour
4 SJ-45/28 Co-Extruder Driving motor:11KW
5 Pipe Vacuum Forming Tank

Tank length:2000mm;Vacuum pump:2.2KW.1pc

Water pump:0.37KW,1pc,stainless steel tank

6 Pipe Spray Cooling Tank Water pump:3KW
7 Pipe Haul Off Machine 0.75KW,2pc;Inverter control
8 No Dust Tube Cutting Machine 0.75KW
9 Pipe Stacker 2000mm,Automatic control





Product Display





High Intensity Plastic Profile Extrusion Line Special For PC Tube Making 0
