|Style:||LED Plastic Profiles||Application:||Lighting Part|
|Automatic Grade:||Automatic||Material:||Plastic, Polycarbonate|
|Screw Design:||Single Screw||Voltage:||380 V 415 V|
plastic extrusion equipment,
plastic moulding machine
Plastic led tube lampshade extruded PC cover for LED lamp plastic tube extruder
Plastic led tube lampshade extruded PC cover Extruder Machine Product Features
The whole production line includes the following parts
1. Drying machine

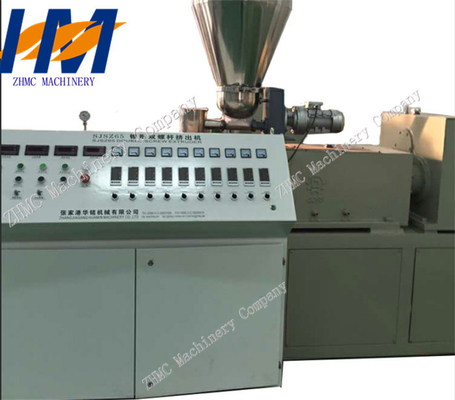

2. SJ-50 single screw extruder
4. Profile molds (make according to your requirements)
5. Vacuum cooling shaping table
6. Belt type tractor
8. Precise Cutting machine
Advantage and application
1. Automatic cutting machine, cutting process with synchronized traction,Cutting length of by laser positioning, automatic/manual/timer/counter/reminder,.Online cutting length error in (0.20mm)
2. The Extruder has frequency converter to save energy power/ Electricity
Usage & scope of application
The production line is mainly used to produce fluorescent tube, LED tube, PC tube, transparent twin-color tube, frosted tube and types of fluorescent tube include glossy, two-color, abrasive, sandblasted, photodiffusion and semi-cycle, etc.
Machine composition & characteristics
1. Our profile production line has may advantages such as unique structure, high automation, easy to operate and continuous production stable and reliable, etc.
2. Production flow chart: raw material → specialized extruder → profile mould → vacuum setting table→ tractor → cutter → stacker

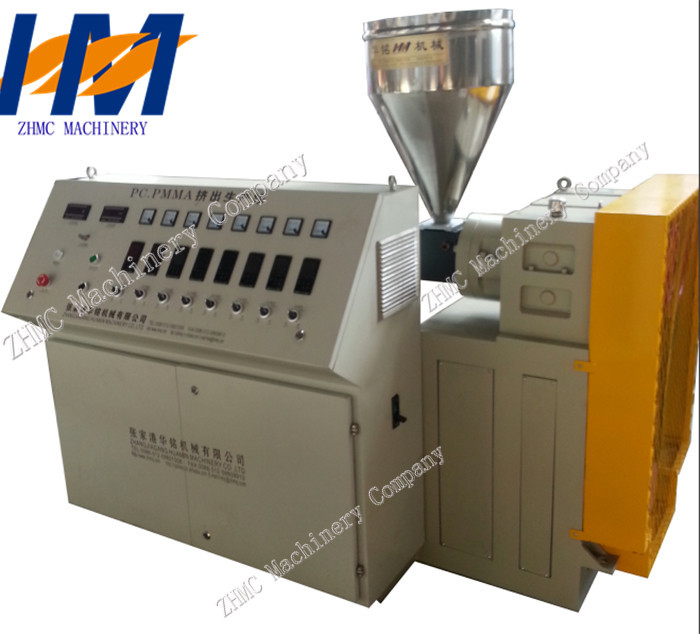

1. The extruder uses high efficient screw with frequency speed control to achieve stable start of low speed.
2. The temperature errors can be controlled within ±1℃ by imported temperature meter.
3. Different extruders are used according to different raw materials.
4. The water collect basin for setting table is made by stainless steel with top quality vacuum pump.
5. The tractor is controlled by inverter. It can lift manually or automatically. The cutter uses overseas blade to position and cut.
|3||Single screw extruder||1|
|4||Vacuum calibration cooling table||1|
|5||Synchronous crawler type Haul-off||1|
|6.||Precision Automatic cutting machine||1|
|7||PC Profile mold||1|
|8||Mold temperature controller||1|
