380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod

380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod
380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod 380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod

Large Image :  380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod

Product Details:
Place of Origin: China
Brand Name: ZHMC Machiney
Certification: CE
Model Number: Plastic coiling machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 sets per month

380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod

Description
Application: Pipe Or Rod Pipe Diameter Range: 16mm-110mm
Voltage: 380V Color: Optional
Dimension: 1950*1320*1260mm Automatic Grade: Automatic
High Light:

tube coiling machine

,

plastic pipe coiler

Coiler pipe coiling machine function for precision tube or polished rod





Coiler pipe coiling machine function



1. The machine is suitable for the traction of PE, PP - R, aluminous model multiple tube, cross-linking compound pipe and sheet plastic winding packaging.

2. Adopt automatic winding, adjust the winding speed, winding tension: winding alternately is equipped with two sets to ensure continuity.

3. Adopts pneumatic opening or collapsed, and at the same time equipped with a polished rod line line, automatic line, achieve uniform rows, winding, the machine has compact structure, high degree of automation, good appearance, easy to operate.



Application



1. Details:Normally this machine is used together with our pipe production line. It is mainly used to collect the plastic flexible pipes and soft sealing strips such as aluminum-plastic compound pipe, crosslinked pipe, PE pipe and PVC pipe, etc.

2. The machine will automatically collect and the winding speed is controlled by tension. Electromagnetic clutch is used to change the disk so as to make sure the machine can continuously work with nonstop.

3. The arm of winding disk will open or close through pneumatic combination mode. The machine is fixed with ray creel stand for automatically pipe arrangement so as to make the pipe coil even and regular.

4. The machine was mainly used to tolling and packing of the plastic soft pipings Tt matches other equipment in usage to effect the automatization of processing

5. This double disk coiler has a longer winder length than the single one.

6. Adopted high quality material, the winder can work long time.

7. It is mainly used to wind soft plastic pipes in the production lines.



Technical parameters



Winding pipe diameter From 16-110 mm (adjustable)
Winding speed 0.5 to 15 m/min
Winding width 200-500 - mm (adjustable)
The winding pipe specifications From 16 to 75
Air pressure 0.6 Mpa


Specification



Model SPS280 SPS400 SPS700
Disk Min Size (mm) 280 400 700
Disk Max Size (mm) 700 1200 1800
Winding width (mm) 220 300 500
Maximum rolling pipe (mm) 20 50 75



Description



1. This hose pipe winder has a longer winder length than the single one.

2. Adopted high quality material, the winder can work long time.

3. It is mainly used to wind sofe plastic pipes in the production lines.



Detailed Picture

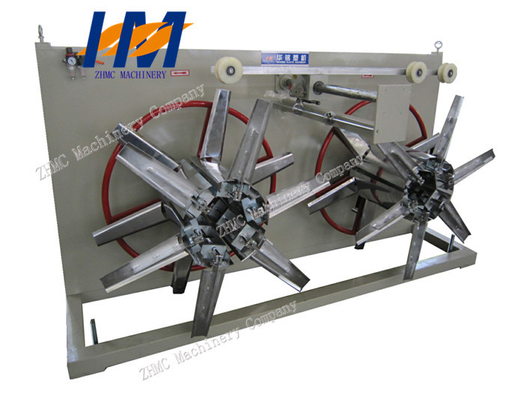

380V Plastic Pipe Winder High Stability For Precision Tube / Polished Rod 0
